RACE v2 Edition - CNC Caliper carrier Vespa GT/GT L/GTS/GTS Super/GTS Super Sport/GTV/GT60 and PIAGGIO ZIP/ ET2/ET4/SFERA

AF Parts

  • $205.00 USD


Custom-designed CNC caliper carrier for Vespa GT/GT L/GTS/GTS Super/GTS Super Sport/GTV/GT60 for PIAGGIO ZIP/ ET2/ET4/SFERA with integrated support for digital speedo sensor.

Allow you to fit 4 pistons caliper with 82mm mounting points (Stage6: S6-1400375 / BGM: BGM2506 / Adelin: ADL-14).

For bigger (non-standard) brake disk size, Stage6 spacer kit S6-140064ET01 is required.

Race track and Endurance proven: Challenge Scootentole & ESC & Zuera !



Are included with the caliper carrier:

- 2x aluminium spacers

- 2x space shims

- 2x screws

Bearings references (not included): 2x HK 2212 or 1x HK2212 & 1xHK2216

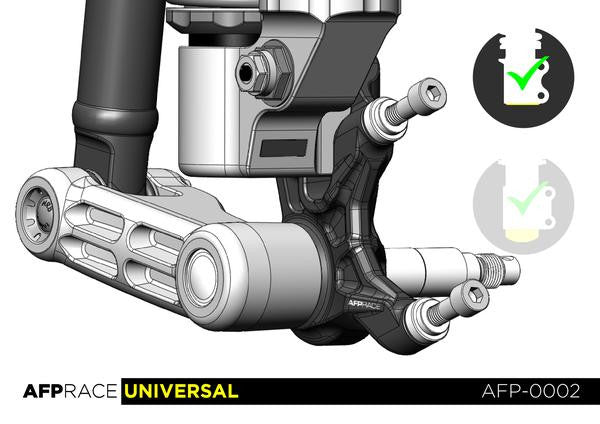

- The universal version AFP-0102 has the same shock absorber mounting points than the original carrier, all shock absorber can be mounted.





User Manual
