RACE Edition - CNC Caliper carrier PK - LOW

AF Parts

  • $149.00 USD

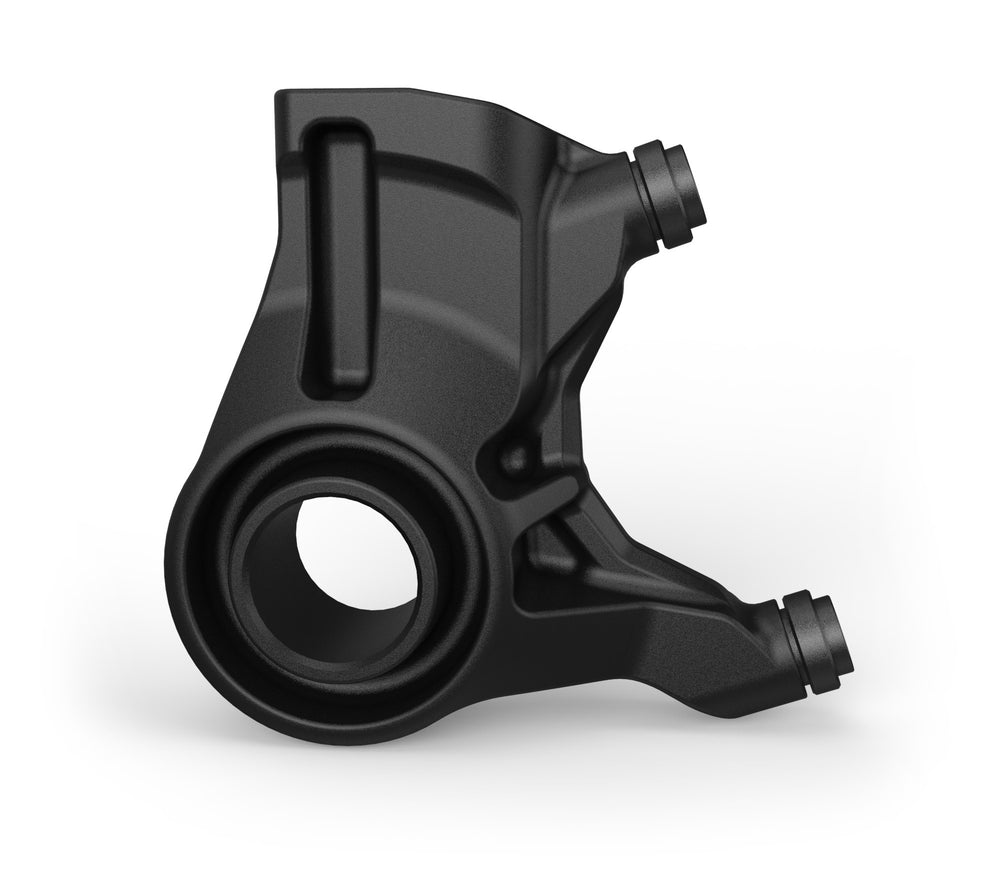

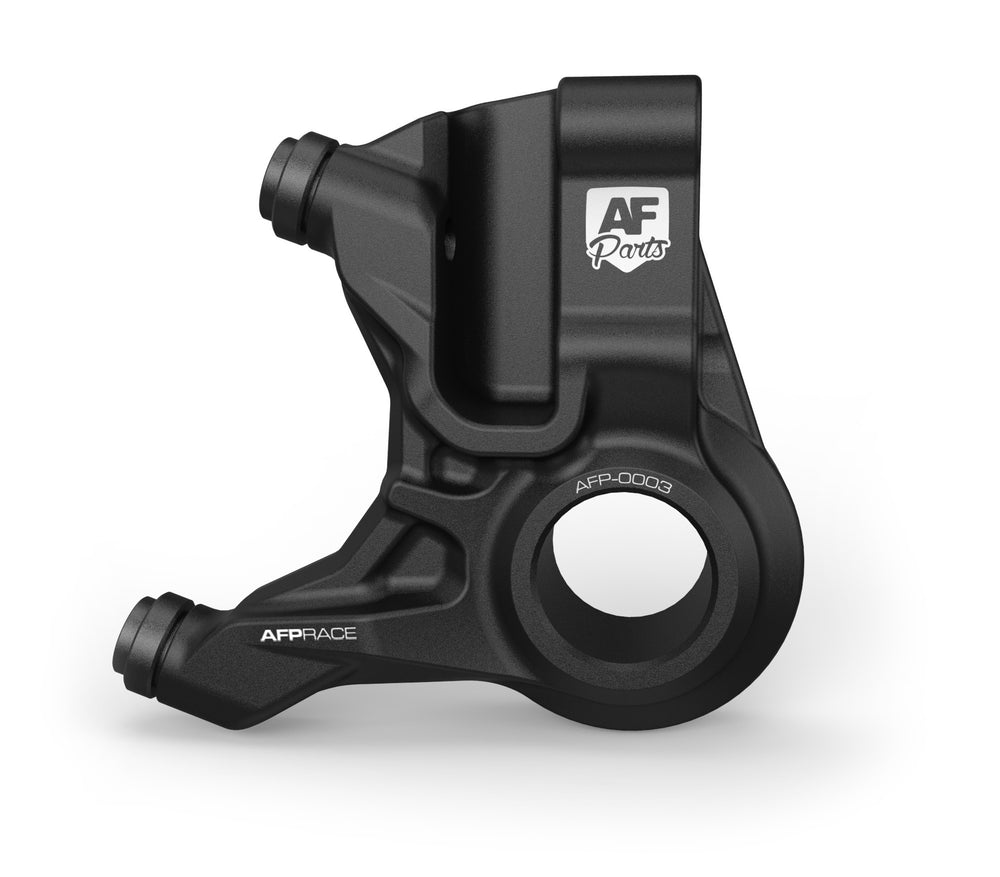

Custom-designed CNC caliper carrier for PK with shock absorber with short body.

Allow you to fit 4 pistons caliper with 82mm mounting points (Stage6: S6-1400375 / BGM: BGM2506 / Adelin: ADL-14).

For bigger (non-standard) brake disk size, Stage6 spacer kit S6-140064ET01 is required.

Race track and Endurance proven: Challenge Scootentole & ESC & Zuera !


Are included with the caliper carrier:

- 2x aluminium spacers

- 2x space shims

- 2x screws

Bearings references (not included): 2x HK 2212 or 1x HK2212 & 1xHK2216

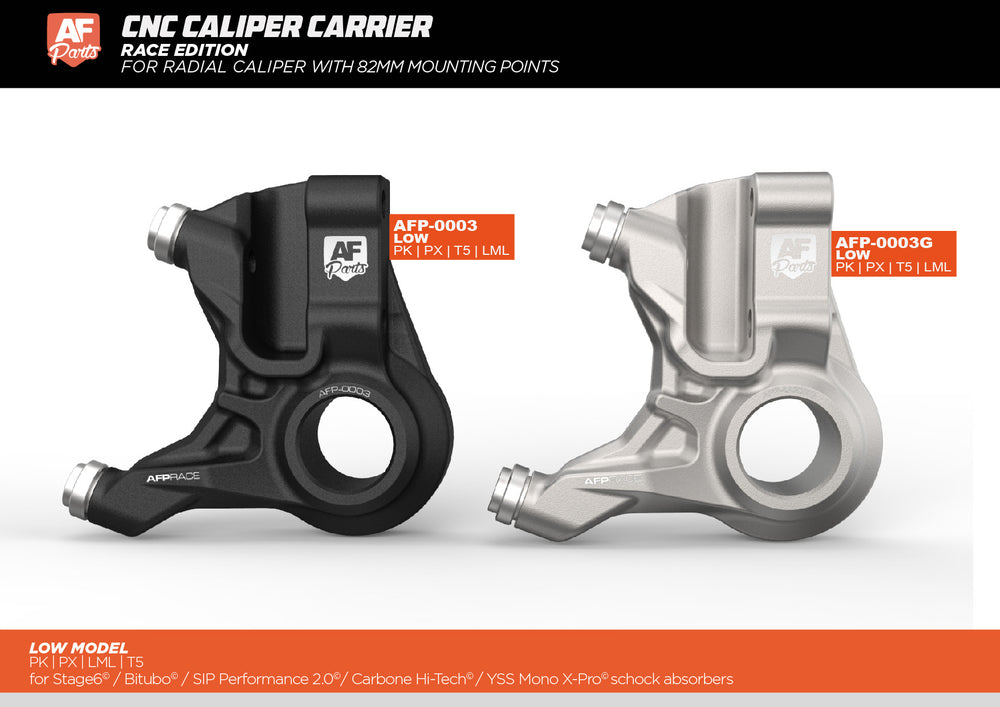

The lowered version AFP-0003 has the mounting points 13mm lower, only PK shock absorber with short body can be mounted ( Stage6 / Bitubo / SIP Performance 2.0 / Carbone Hi-Tech / YSS Mono X-Pro ). Distance between fixing holes should be between 34,5mm > 35mm.
